VK 9000 X
Cod. 02063603
EAN 8422248371186
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248371186
Subfamily
Angle Glass
Product sheet according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Annual energy consumption) (kWh/year)
26,2
EEI class (energy efficiency class)
A
FDE (fluid dynamic efficiency)
28,4
FDE class (fluid dynamic efficiency class)
A
LE (light efficiency) (lux/W)
67
LE class (light efficiency class)
A
GFE (grease filtering efficiency)
70,1
GFE class (grease filtering efficiency class)
D
Airflow in normal mode MIN (m3/h)
174,3
Airflow in normal mode MAX (m3/h)
477,3
Acoustic power in normal mode MIN (dB)
56
Acoustic power in normal mode MAX (dB)
69
Po (energy consumption in off mode) (W)
0
Integration directive EU 66/2014
ƒ (time increase factor)
1
EEI (Energy Efficiency Index)
49,2
QBEP (maximum efficiency at air flow point) (m3/h)
258,8
PBEP (maximum efficiency at pressure point) (Pa)
260
WBEP (power consumption at maximum efficiency) (W)
65,9
WL (nominal power lighting system) (W)
3
EMIDDLE (Average illuminance on the cooking surface) (lux)
200

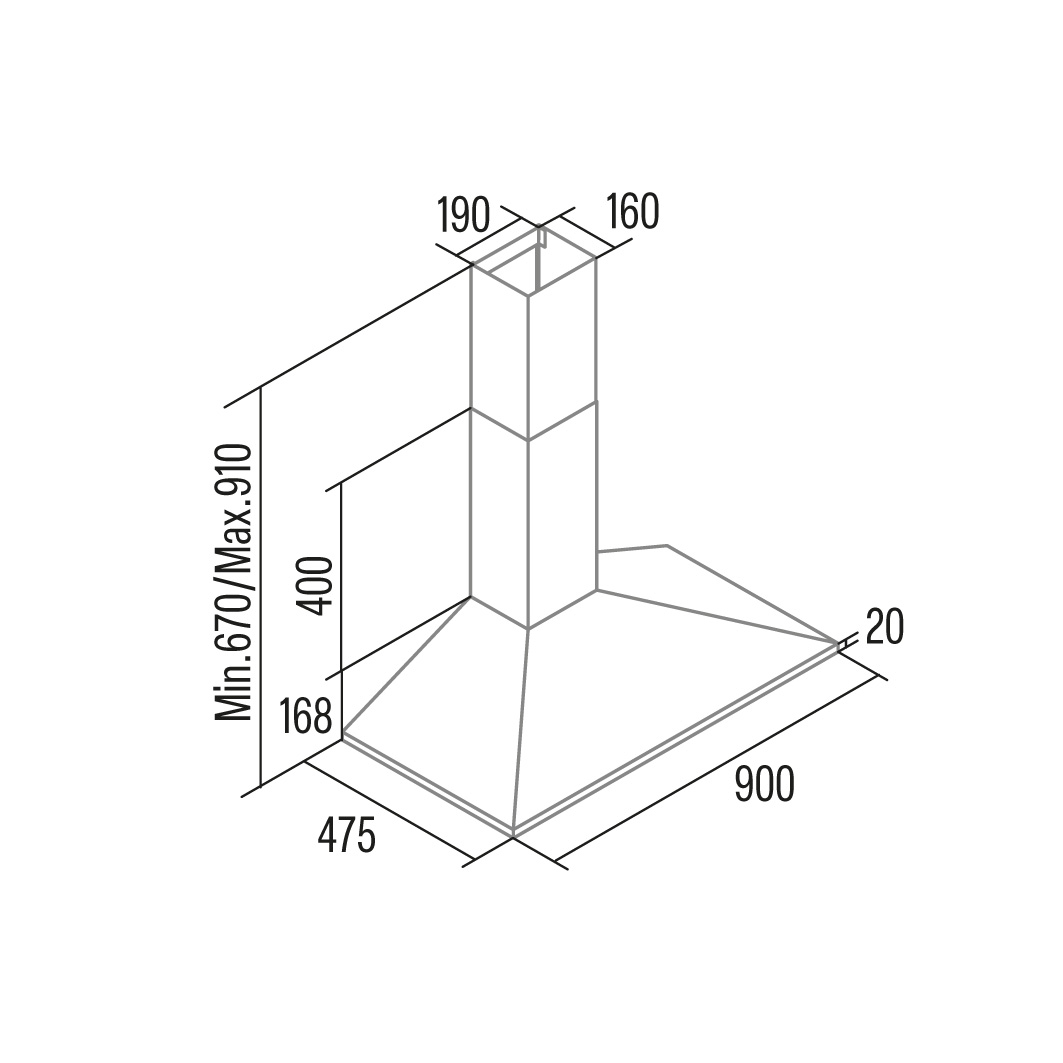

External Dimensions
Diamètre de sortie (mm)
150
Characteristics
Motor quantity
1
Power levels
3
Electric connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50
Electric shock protection
Class II
Plug type
No plug
