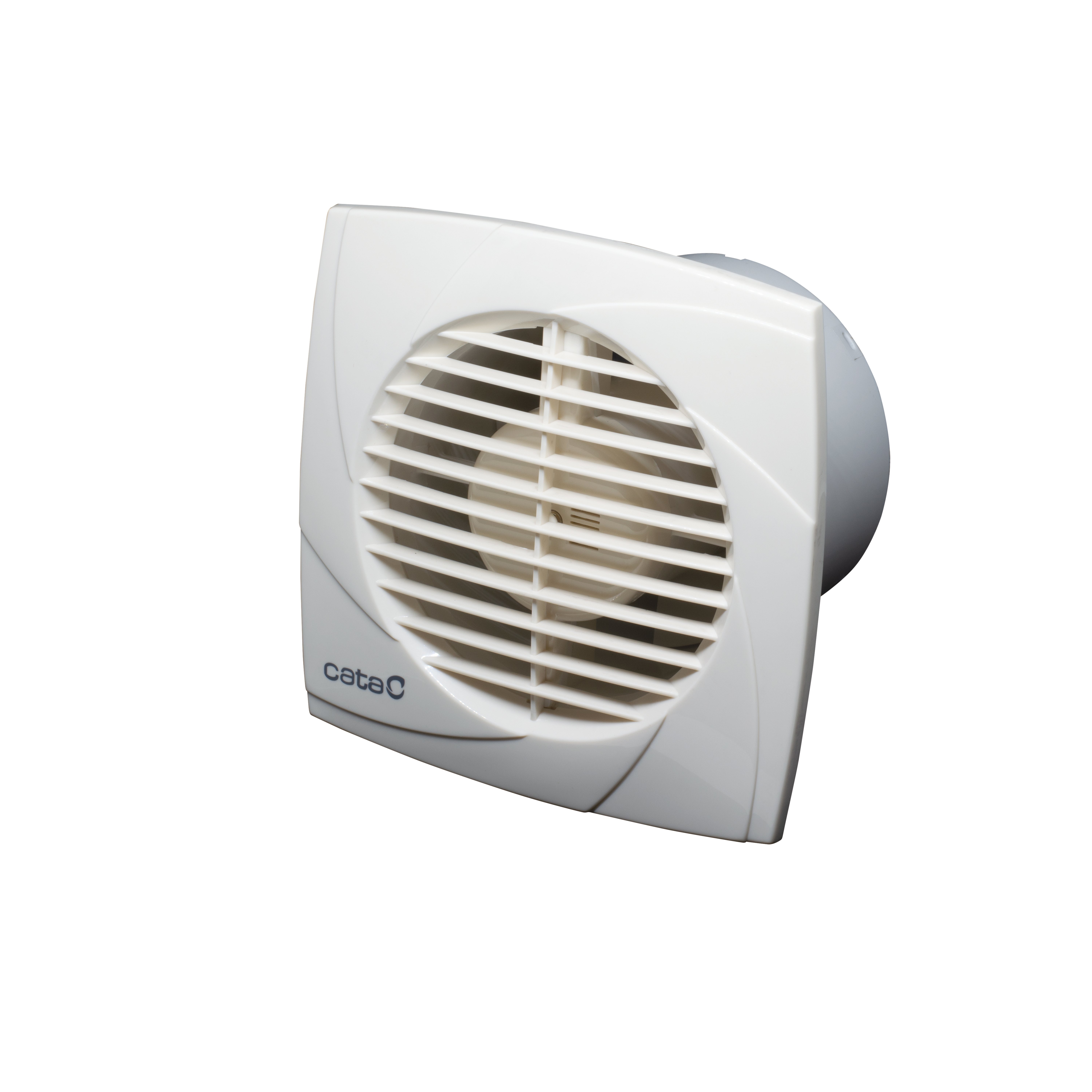

B-12 PLUS
Cod. 00982000
EAN 8422248113472
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248113472
Subfamily
Axial
General features
Motor type
AC/SHADED POLE
Motor model
SP5820
Motor power (W)
20
Lighting technology
N/A
Light quantity
N/A
Filter type
N/A
Number of layers
N/A
Control description
N/A
Power levels
N/A
Timer
-
Hygro timer
-
Electronic filter saturation indicator
-
Dimmable lighting
-
Installation

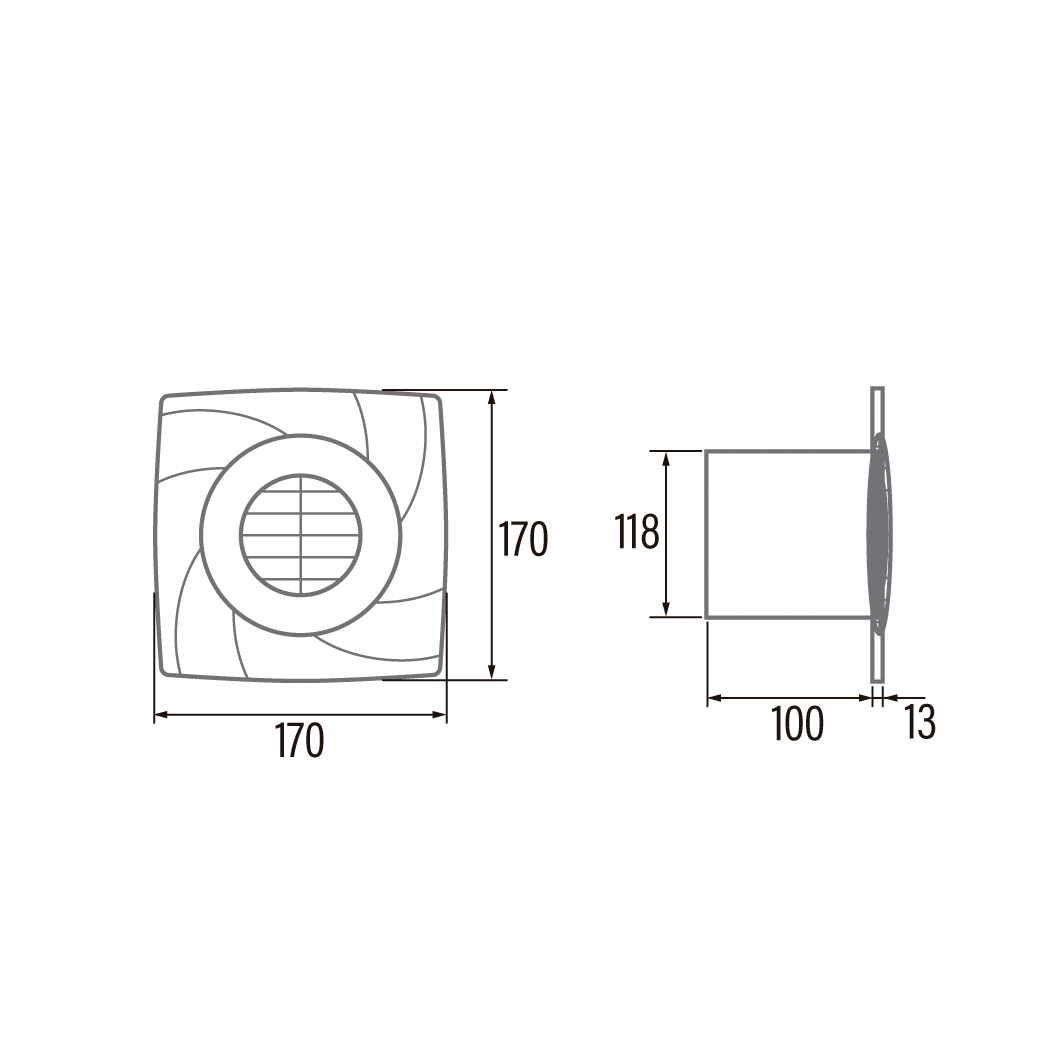

Width (mm)
170
Height (mm)
170
Depth (mm)
100
Total minimum height (mm)
2300
Outlet diameter (mm)
118
Maximum pressure (Pa)
48
Anti-return flap included
-
Easy installation system
No
Power connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50/60
Nominal input power (W)
20
Electric shock protection
Class II
Plug type
No plug
Accessories
Fixed grill
1920200
Overpressure relief valve
1920300
Window fixing ring
1920100
Anti-return flap
1920600
Power and water connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50/60
Nominal input power (W)
20
Electric shock protection
Class II
Plug type
No plug
