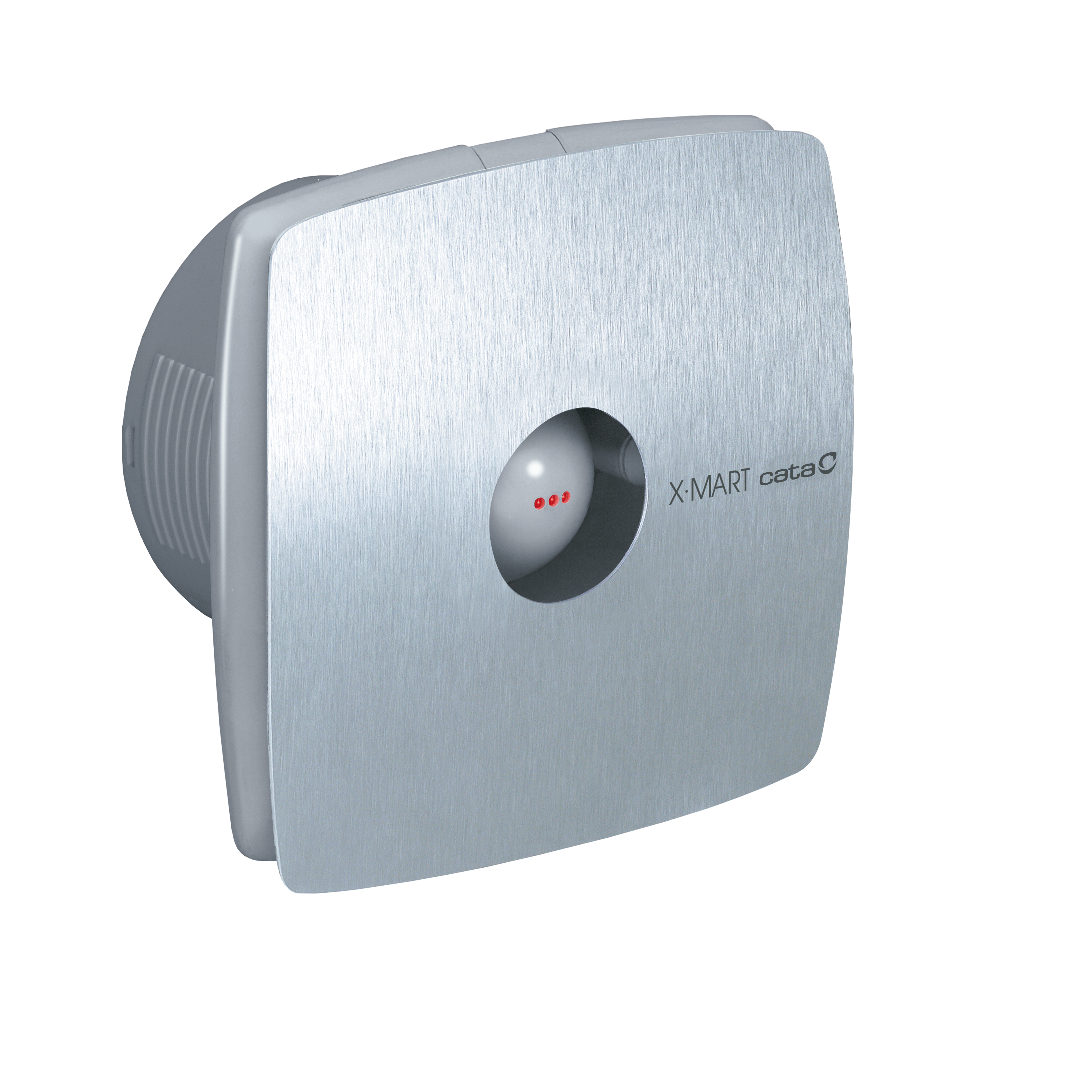

X-MART 15 INOX
Cod. 01060000
EAN 8422248003698
Downloads
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248003698
Subfamily
Axial
General features
Motor type
AC/SHADED POLE
Motor model
SP5825
Motor power (W)
25
Lighting technology
N/A
Light quantity
N/A
Filter type
N/A
Number of layers
N/A
Control description
N/A
Power levels
N/A
Timer
-
Hygro timer
-
Electronic filter saturation indicator
-
Dimmable lighting
-
Installation

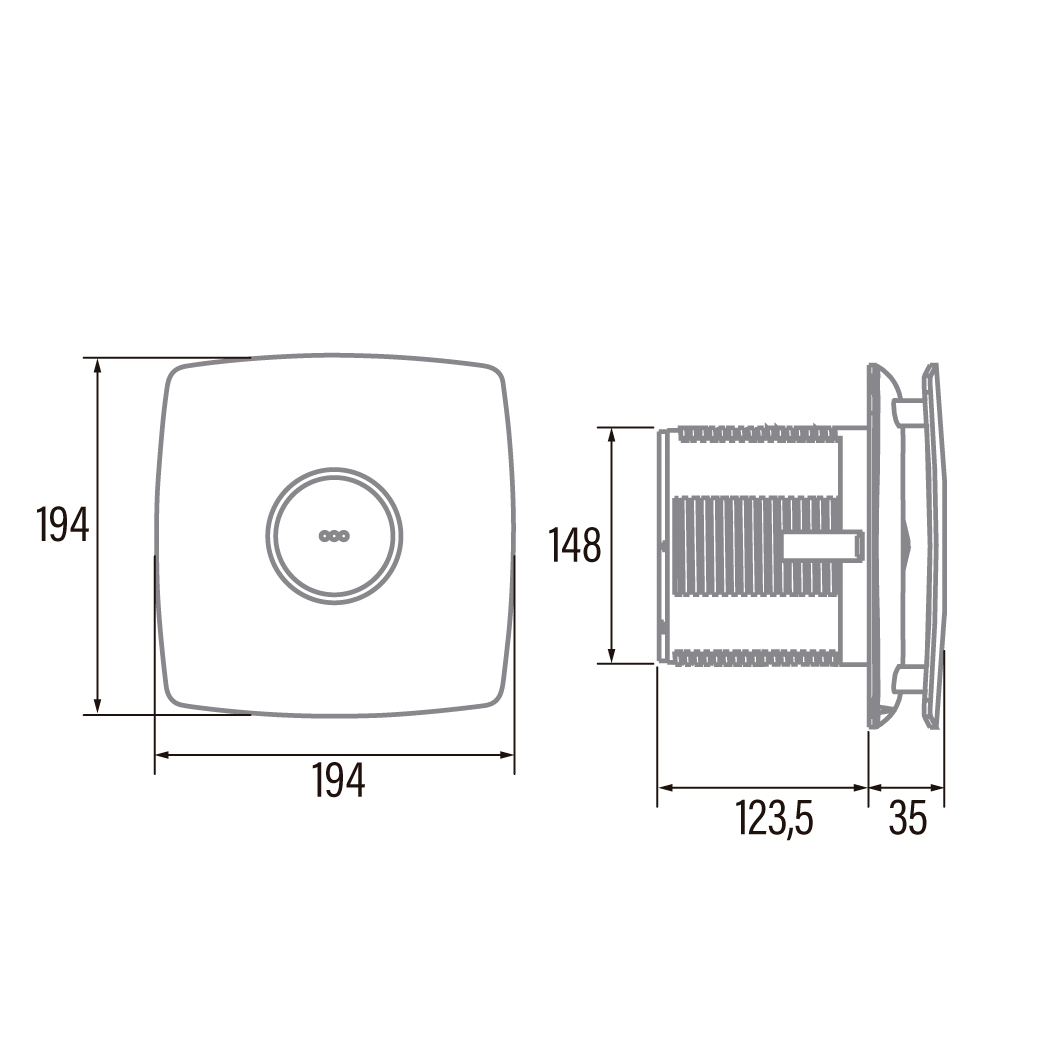

Width (mm)
194
Height (mm)
194
Depth (mm)
123,5
Total minimum height (mm)
2300
Outlet diameter (mm)
148
Maximum pressure (Pa)
63
Anti-return flap included
√
Easy installation system
Quick_FIx
Power connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50/60
Nominal input power (W)
25
Electric shock protection
Class II
Plug type
No plug
Accessories
Backdraught seal
230
Power and water connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50/60
Nominal input power (W)
25
Electric shock protection
Class II
Plug type
No plug
