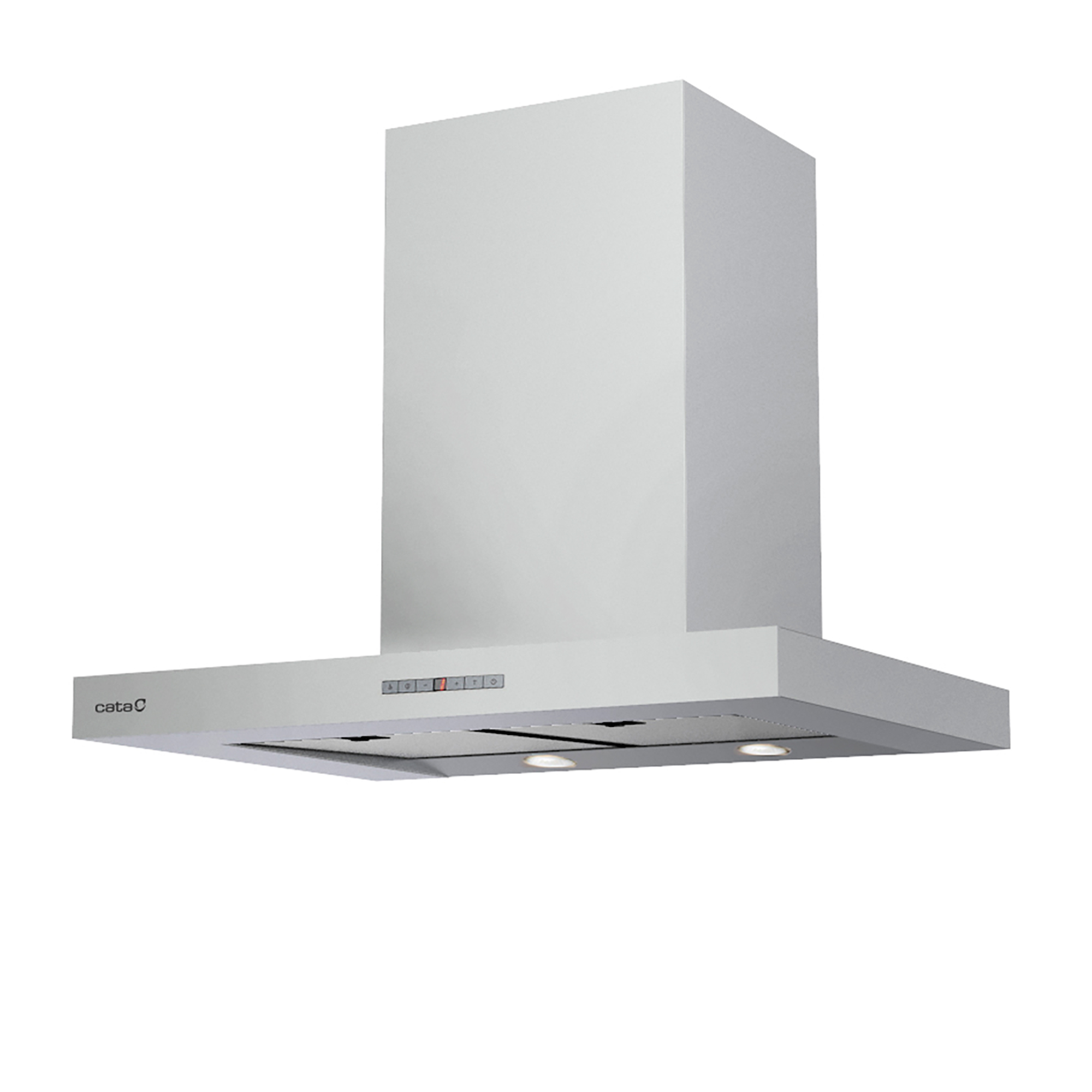

LEGEND 700 X
Cod. 02021306
EAN 8422248068659
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248068659
Subfamily
Box
Product sheet according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Annual energy consumption) (kWh/year)
42,1
EEI class (energy efficiency class)
A
FDE (fluid dynamic efficiency)
31,7
FDE class (fluid dynamic efficiency class)
A
LE (light efficiency) (lux/W)
36
LE class (light efficiency class)
A
GFE (grease filtering efficiency)
78,5
GFE class (grease filtering efficiency class)
C
Airflow in normal mode MIN (m3/h)
200
Airflow in normal mode MAX (m3/h)
524
Airflow in boost mode MIN (m3/h)
648
Acoustic power in normal mode MIN (dB)
40
Acoustic power in normal mode MAX (dB)
64
Acoustic power boost mode (dB)
67
Po (energy consumption in off mode) (W)
0,41
Ps (energy consumption in standby mode) (W)
0
Integration directive EU 66/2014
ƒ (time increase factor)
0,8
EEI (Energy Efficiency Index)
44,8
QBEP (maximum efficiency at air flow point) (m3/h)
390,3
PBEP (maximum efficiency at pressure point) (Pa)
329
WBEP (power consumption at maximum efficiency) (W)
112,6
WL (nominal power lighting system) (W)
7
EMIDDLE (Average illuminance on the cooking surface) (lux)
252

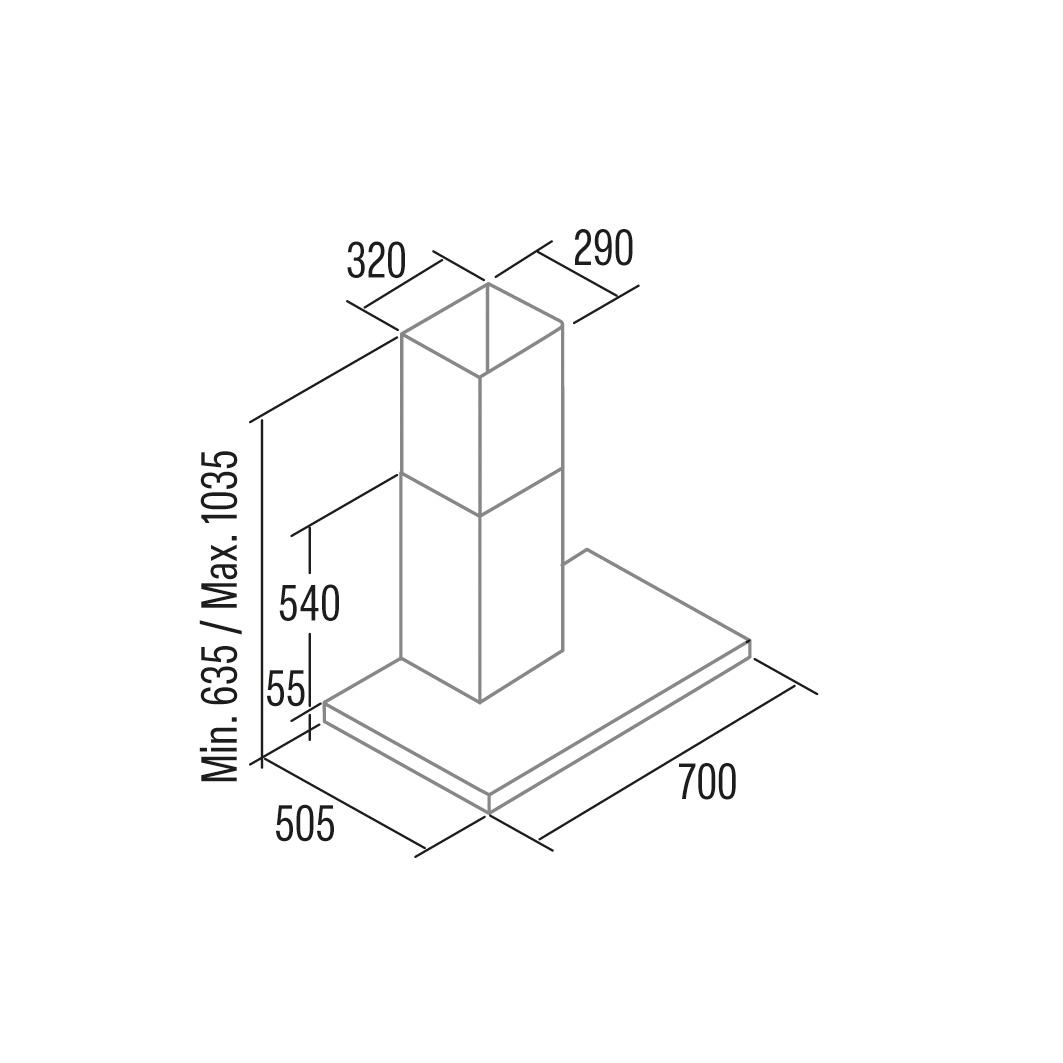

External Dimensions
Width (mm)
700
Depth (mm)
505
Maximum total height (mm)
1035
Minimum total height (mm)
635
Diamètre de sortie (mm)
150, 125
Characteristics
Motor quantity
1
Motor model
BTDCA
Maximum pressure (Pa)
455
Filter technology
Aluminium mesh
Control technology
PANEL ELECTRONICO DISPLAY DIGITAL
Booster
√
Power levels
5
Timer
√
Filter saturation indicator
√
Charcoal filter replacement indicator
-
Dimmer function
√
Connectivity
-
Remote control
-
Display
Display_grafico
Lighting
Light model
EcoLed
Ray technology
LED
Installation
Minimum distance to electric plate (mm)
650
Minimum distance to gas plate (mm)
650
Recirculation option
√
Charcoal filter
-
Back draught shutter
-
Inner shield
-
Electric connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50
Nominal input power (W)
137
Electric shock protection
Class II
Power cord length (m)
1,5
Plug type
Type C
Accessories
Upper decorative duct extension
2861301
White decorative duct
No
Black decorative duct
No
Island tube booster
No
Back draught shutter
2832004
MAX PRO Metal filter
2800917
Activated charcoal filter
2859398
Noiseless flexible duct
2893002
Recirculation kit
2894001
