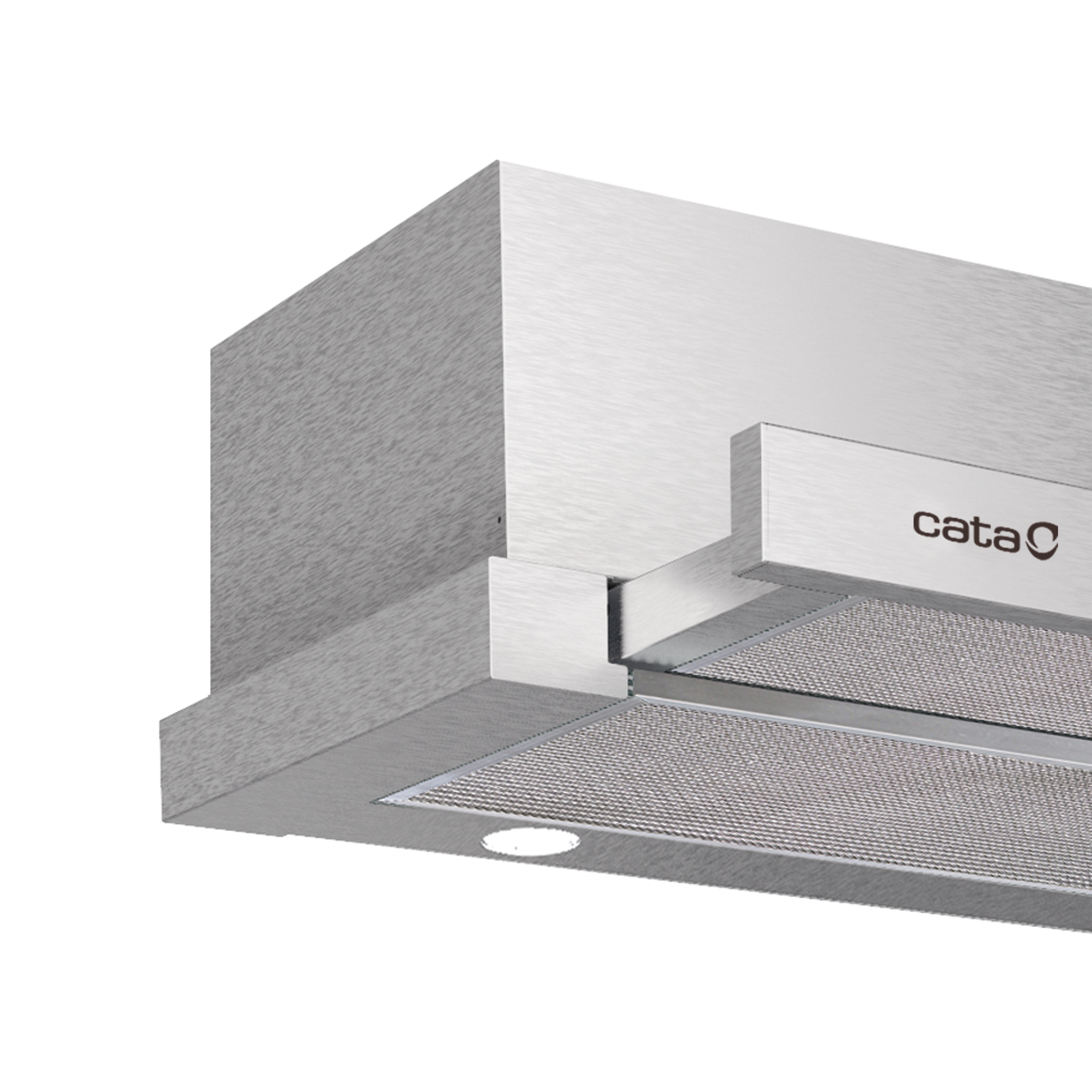

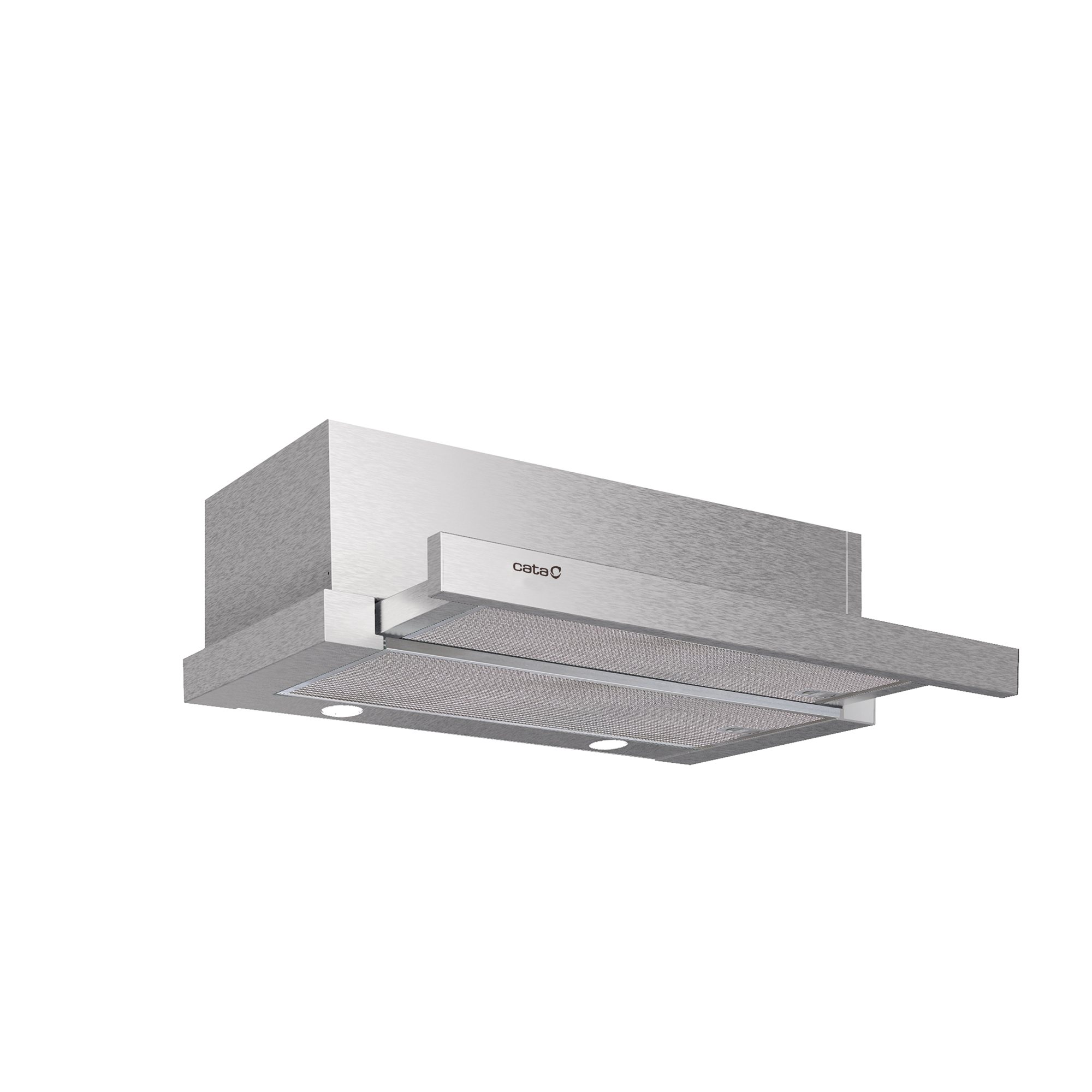

EXTENDER 600
Cod. 02017606
EAN 8422248110334
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248110334
Subfamily
Telescopic
Product sheet according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Annual energy consumption) (kWh/year)
44,5
EEI class (energy efficiency class)
C
FDE (fluid dynamic efficiency)
11,9
FDE class (fluid dynamic efficiency class)
E
LE (light efficiency) (lux/W)
40
LE class (light efficiency class)
A
GFE (grease filtering efficiency)
68
GFE class (grease filtering efficiency class)
D
Airflow in normal mode MIN (m3/h)
150
Airflow in normal mode MAX (m3/h)
390
Acoustic power in normal mode MIN (dB)
45,5
Acoustic power in normal mode MAX (dB)
57
Integration directive EU 66/2014
ƒ (time increase factor)
1,6
EEI (Energy Efficiency Index)
78,2
QBEP (maximum efficiency at air flow point) (m3/h)
201,1
PBEP (maximum efficiency at pressure point) (Pa)
12,5
WBEP (power consumption at maximum efficiency) (W)
69
WL (nominal power lighting system) (W)
7
EMIDDLE (Average illuminance on the cooking surface) (lux)
252

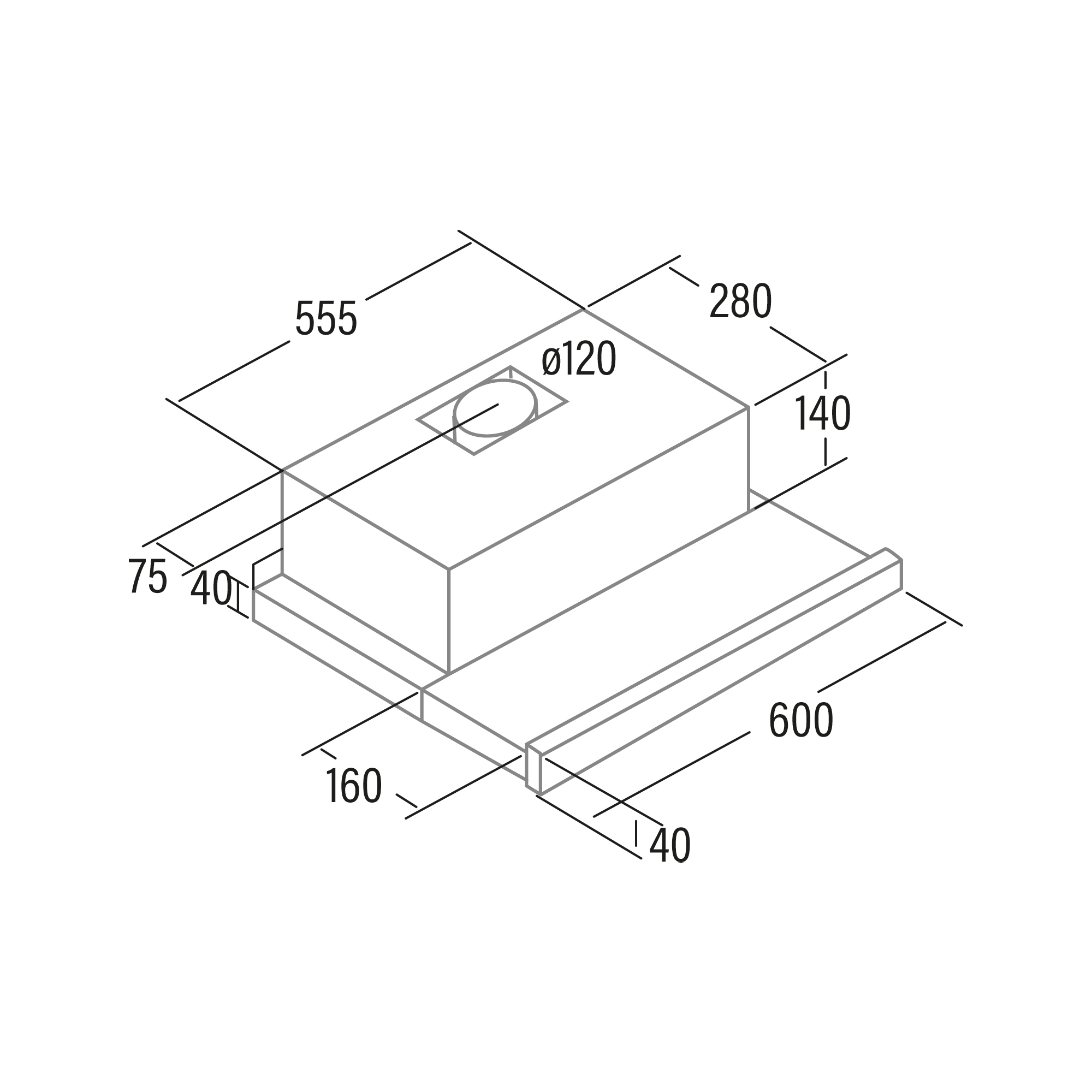

External Dimensions
Width (mm)
600
Depth (mm)
440
Maximum total height (mm)
181
Diamètre de sortie (mm)
120
Characteristics
Motor quantity
1
Motor model
TF2003
Maximum pressure (Pa)
194

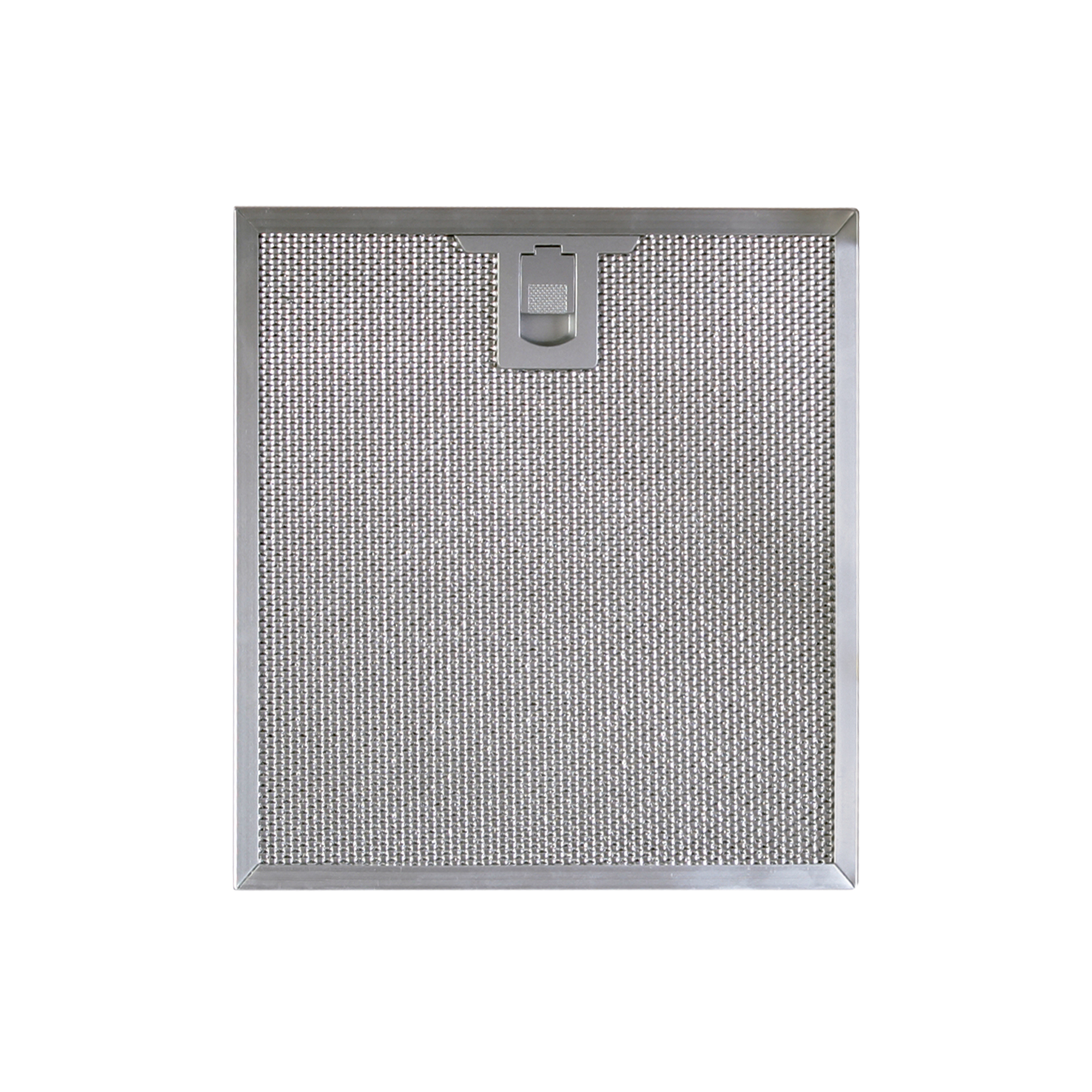

Filter technology
Aluminium mesh
Control technology
Mechanical rocker switch
Booster
-
Power levels
2
Timer
-
Filter saturation indicator
-
Charcoal filter replacement indicator
-
Dimmer function
-
Connectivity
-
Remote control
-
Display
-
Lighting
Light model
ECOLED
Ray technology
LED
Installation
Minimum distance to electric plate (mm)
556
Minimum distance to gas plate (mm)
656
Electric connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50
Nominal input power (W)
107
Electric shock protection
Class I
Accessories
Activated charcoal filter
02825267
Noiseless flexible duct
02800004
