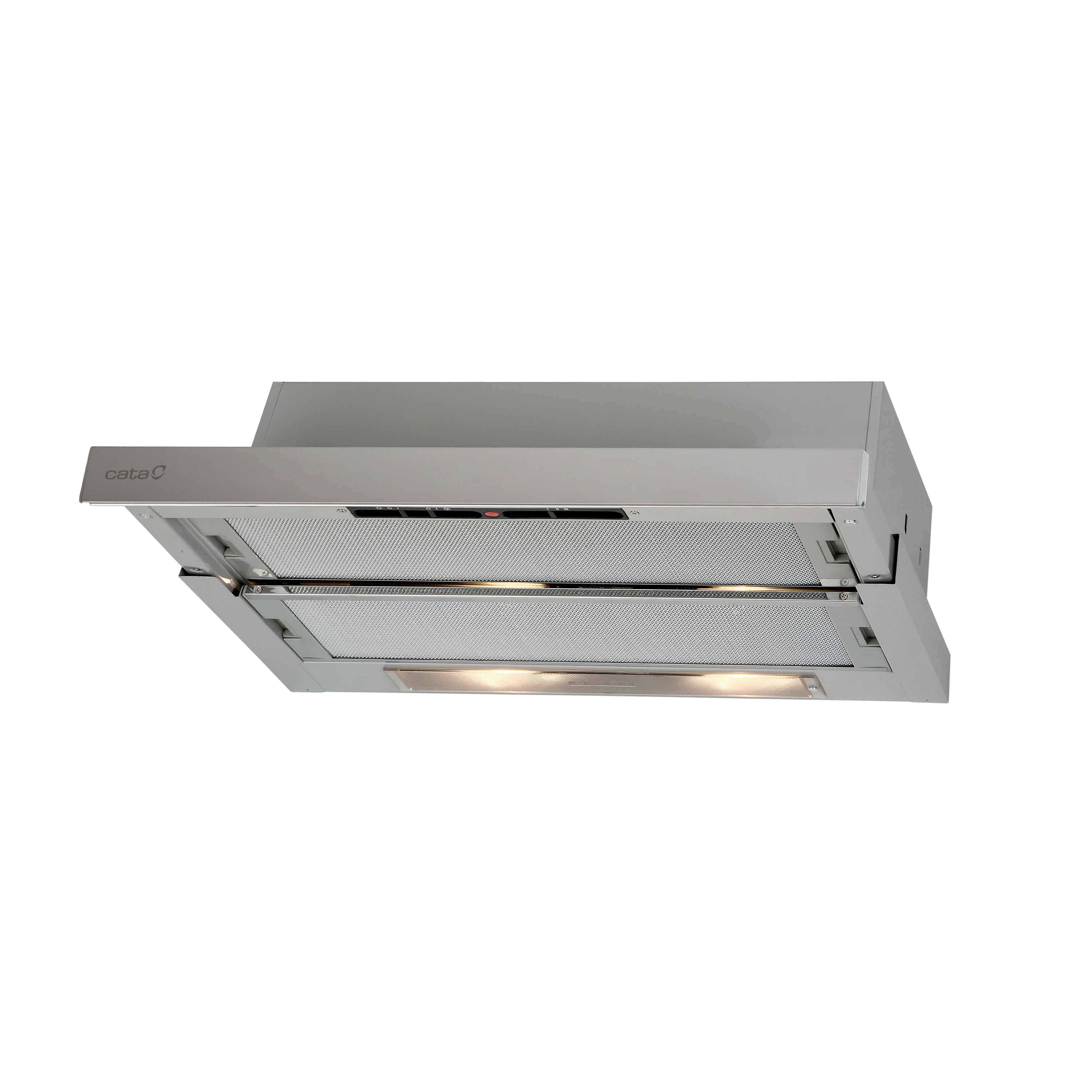

TF-5260 X
Cod. 02034310
EAN 8422248082129
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248082129
Subfamily
Telescopic
Product sheet according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Annual energy consumption) (kWh/year)
78,3
EEI class (energy efficiency class)
D
FDE (fluid dynamic efficiency)
9
FDE class (fluid dynamic efficiency class)
E
LE (light efficiency) (lux/W)
9,3
LE class (light efficiency class)
E
GFE (grease filtering efficiency)
66,5
GFE class (grease filtering efficiency class)
D
Airflow in normal mode MIN (m3/h)
174,8
Airflow in normal mode MAX (m3/h)
325,1
Acoustic power in normal mode MIN (dB)
54
Acoustic power in normal mode MAX (dB)
68
Po (energy consumption in off mode) (W)
0
Ps (energy consumption in standby mode) (W)
0
Integration directive EU 66/2014
ƒ (time increase factor)
1,7
EEI (Energy Efficiency Index)
93,5
QBEP (maximum efficiency at air flow point) (m3/h)
198
PBEP (maximum efficiency at pressure point) (Pa)
185
WBEP (power consumption at maximum efficiency) (W)
113,3
WL (nominal power lighting system) (W)
11
EMIDDLE (Average illuminance on the cooking surface) (lux)
102

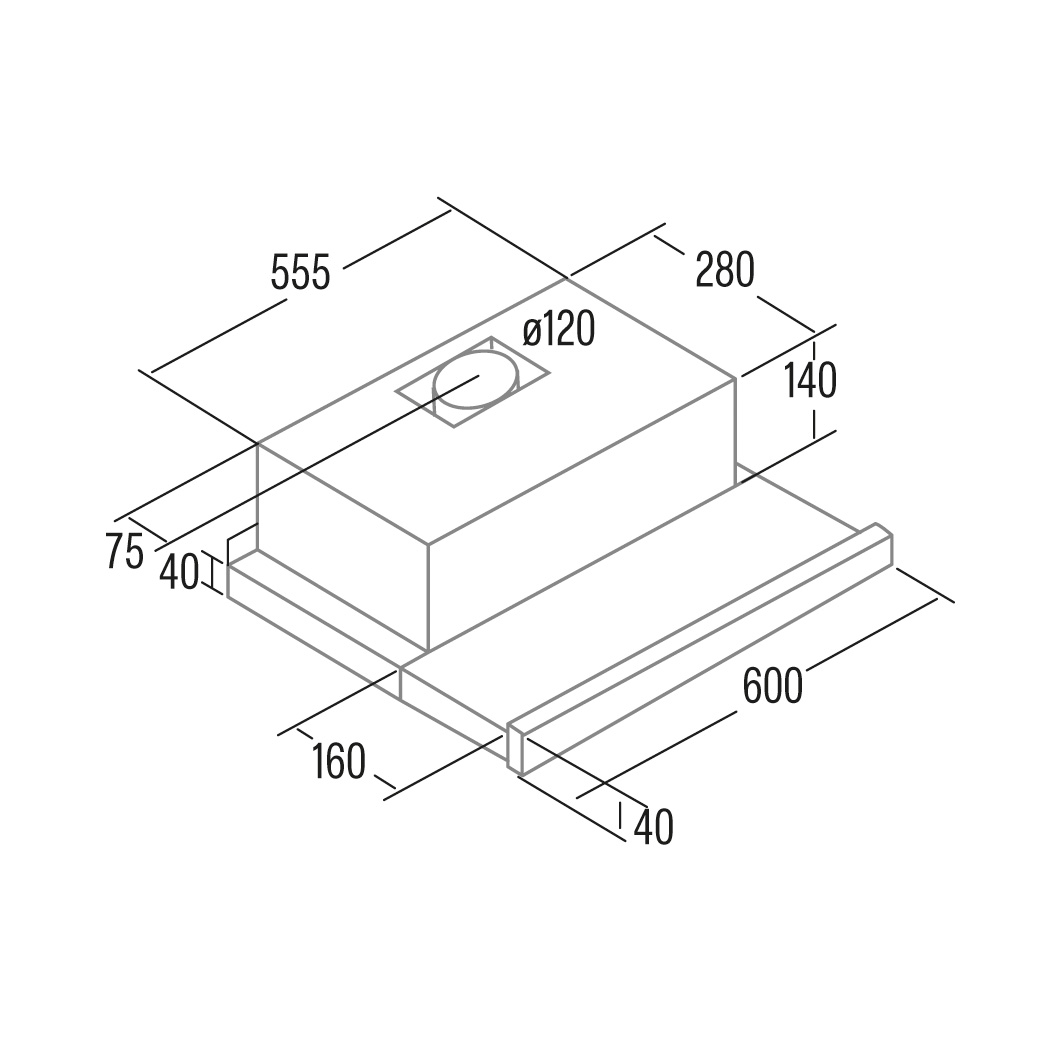

External Dimensions
Width (mm)
600
Depth (mm)
280
Maximum total height (mm)
175
Minimum total height (mm)
175
Diamètre de sortie (mm)
120
Characteristics
Motor quantity
2
Motor model
L1N
Maximum pressure (Pa)
301
Filter technology
Aluminium mesh
Control technology
Mechanical slider
Booster
-
Power levels
3
Timer
-
Filter saturation indicator
-
Charcoal filter replacement indicator
-
Dimmer function
-
Connectivity
-
Remote control
-
Display
-
Lighting
Light model
LED E-14
Ray technology
LED
Installation
Minimum distance to electric plate (mm)
550
Minimum distance to gas plate (mm)
650
Recirculation option
√
Charcoal filter
-
Back draught shutter
-
Inner shield
-
Electric connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50
Nominal input power (W)
141
Electric shock protection
Class II
Power cord length (m)
1,5
Plug type
Type C
Accessories
Upper decorative duct extension
No
White decorative duct
No
Black decorative duct
No
Island tube booster
No
Back draught shutter
2849002
MAX PRO Metal filter
No
Activated charcoal filter
2846762
Noiseless flexible duct
No
Recirculation kit
No
