AS 600
Cod. 08000406
EAN 8422248198554
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248198554
Subfamily
Flow-in
Product sheet according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Annual energy consumption) (kWh/year)
29
EEI class (energy efficiency class)
A+
FDE (fluid dynamic efficiency)
32
FDE class (fluid dynamic efficiency class)
A
LE (light efficiency) (lux/W)
0
GFE (grease filtering efficiency)
45,8
GFE class (grease filtering efficiency class)
F
Airflow in normal mode MIN (m3/h)
246,4
Airflow in normal mode MAX (m3/h)
446,3
Airflow in boost mode MIN (m3/h)
531,5
Acoustic power in normal mode MIN (dB)
45
Acoustic power in normal mode MAX (dB)
64
Acoustic power boost mode (dB)
67
Po (energy consumption in off mode) (W)
0,4
Ps (energy consumption in standby mode) (W)
0
Product sheet
Number of cooking zones
4
Zone 1: Technology
Induction
Zone 1: Type of zone
Rectangular Flexible
Zone 1: Position
Front Left
Zone 1: Zone diameter (mm)
19
Zone 1: Power (kW)
15
Zone 1: Booster (kW)
2
Zone 1: Consumption (Wh / kg)
193,56
Zone 2: Technology
Induction
Zone 2: Type of zone
Rectangular Flexible
Zone 2: Position
Rear Left
Zone 2: Zone diameter (mm)
19
Zone 2: Power (kW)
2
Zone 2: Booster (kW)
2,8
Zone 2: Consumption (Wh / kg)
173,73
Zone 3: Technology
Induction
Zone 3: Type of zone
Rectangular Flexible
Zone 3: Position
Rear Right
Zone 3: Zone diameter (mm)
19
Zone 3: Power (kW)
2
Zone 3: Booster (kW)
2,8
Zone 3: Consumption (Wh / kg)
191,01
Zone 4: Technology
Induction
Zone 4: Type of zone
Rectangular Flexible
Zone 4: Position
Front Right
Zone 4: Zone diameter (mm)
19
Zone 4: Power (kW)
1,5
Zone 4: Booster (kW)
2
Zone 4: Consumption (Wh / kg)
189,12
Integration directive EU 66/2014
ƒ (time increase factor)
1
EEI (Energy Efficiency Index)
49,2
QBEP (maximum efficiency at air flow point) (m3/h)
264,3
PBEP (maximum efficiency at pressure point) (Pa)
294
WBEP (power consumption at maximum efficiency) (W)
79,4
WL (nominal power lighting system) (W)
0

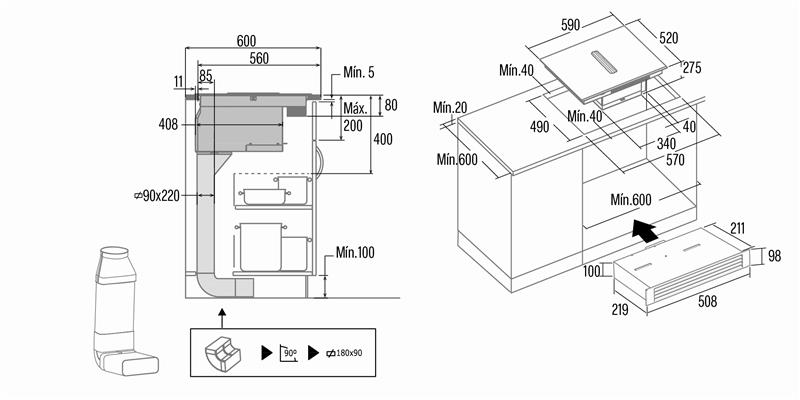

Dimensions
Width (mm)
590
Height (mm)
275
Depth (mm)
520
Built-in width (mm)
570
Built-in depth (mm)
504
Easy installation system
Quick Fix
External Dimensions
Width (mm)
590
Depth (mm)
520
Maximum total height (mm)
275
Minimum total height (mm)
570
Diamètre de sortie (mm)
150
Finishing
Material
Glass
Bevel
Front
Frame
No
Cooking supports
N/A
Characteristics
Motor quantity
1
Motor model
BT4DC
Filter technology
Aluminium mesh
Control technology
TFT
Booster
√
Power levels
6
Timer
√
Filter saturation indicator
-
Charcoal filter replacement indicator
-
Dimmer function
-
Connectivity
√
Remote control
-
Display
Display
Control
Control type
TFT
Control position
Front Centre
Independent zone control
-
Hidden control
-
Power levels
9 + Booster
Knob type
N/A
Cooking time programming
√
Power management
-
Available power limits (kW)
No
Connectivity
Auto
Autoignition
N/A
Safety
Safety lock
√
Child lock
Yes (Key)
Residual heat indicator
√
Automatic cookware detection
√
Smart cookware detection
-
Automatic safety shutdown
√
Liquid spill detection
√
Safety valve
-
Installation
Recirculation option
-
Charcoal filter
-
Back draught shutter
No
Inner shield
-
Electrical connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50/60
Nominal input power (W)
7335
Electric shock protection
Class I
Plug type
No plug
Electric connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50/60
Nominal input power (W)
7335
Electric shock protection
Class I
Plug type
No plug
Accessories
Recirculation kit
02800992 + 02801000
