B-10 TIMER
Cod. 00911000
EAN 8422248110105
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248110105
Subfamily
Axial
General features
Motor type
AC/SHADED POLE
Motor model
SP5812
Motor power (W)
15
Lighting technology
N/A
Light quantity
N/A
Filter type
N/A
Number of layers
N/A
Control description
Potentiometer
Power levels
N/A
Timer
-
Hygro timer
-
Electronic filter saturation indicator
-
Dimmable lighting
-
Installation

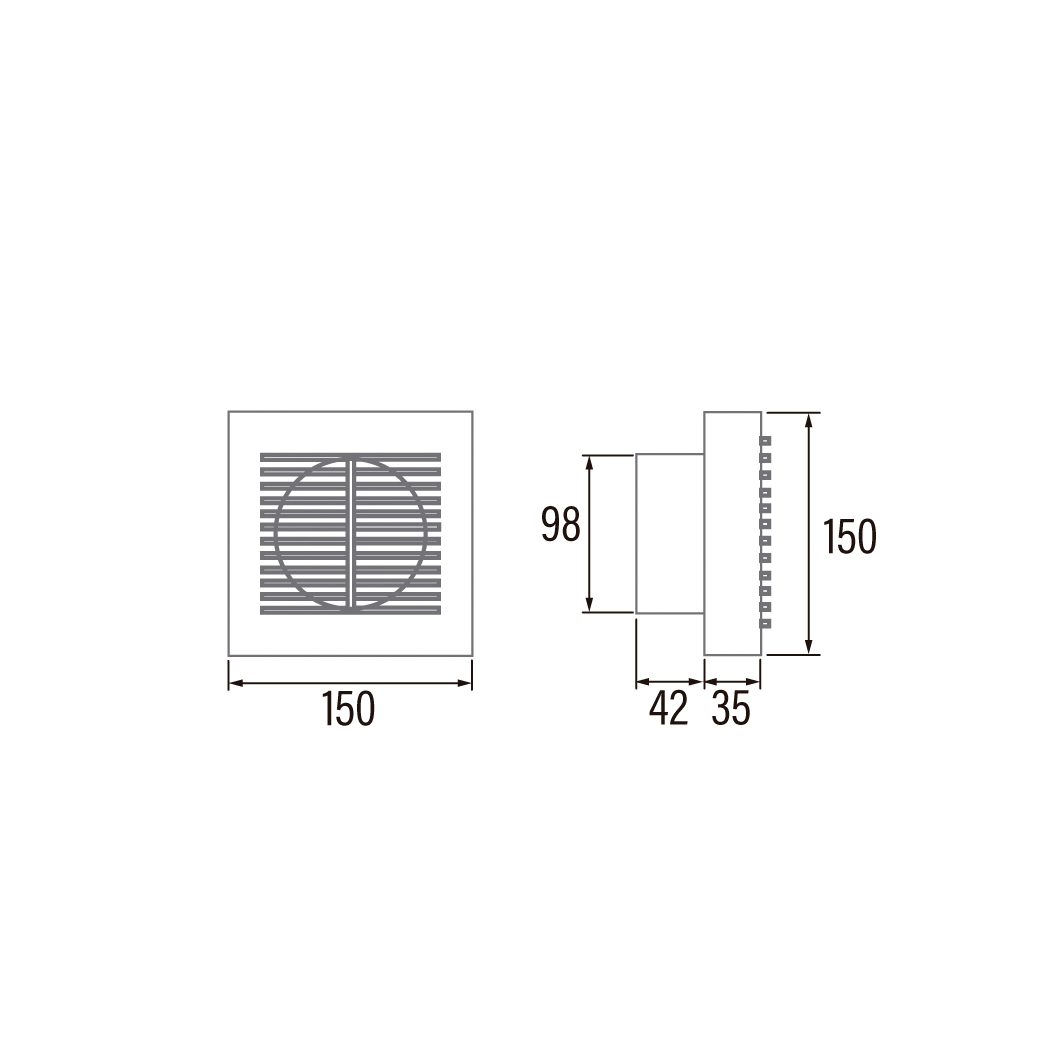

Width (mm)
150
Height (mm)
150
Depth (mm)
42
Total minimum height (mm)
2300
Outlet diameter (mm)
98
Maximum pressure (Pa)
25
Anti-return flap included
-
Easy installation system
No
Power connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50/60
Nominal input power (W)
15
Electric shock protection
Class II
Plug type
No plug
Accessories
Fixed grill
1910200
Overpressure relief valve
1910300
Window kit
1910000
Power and water connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50/60
Nominal input power (W)
15
Electric shock protection
Class II
Plug type
No plug
