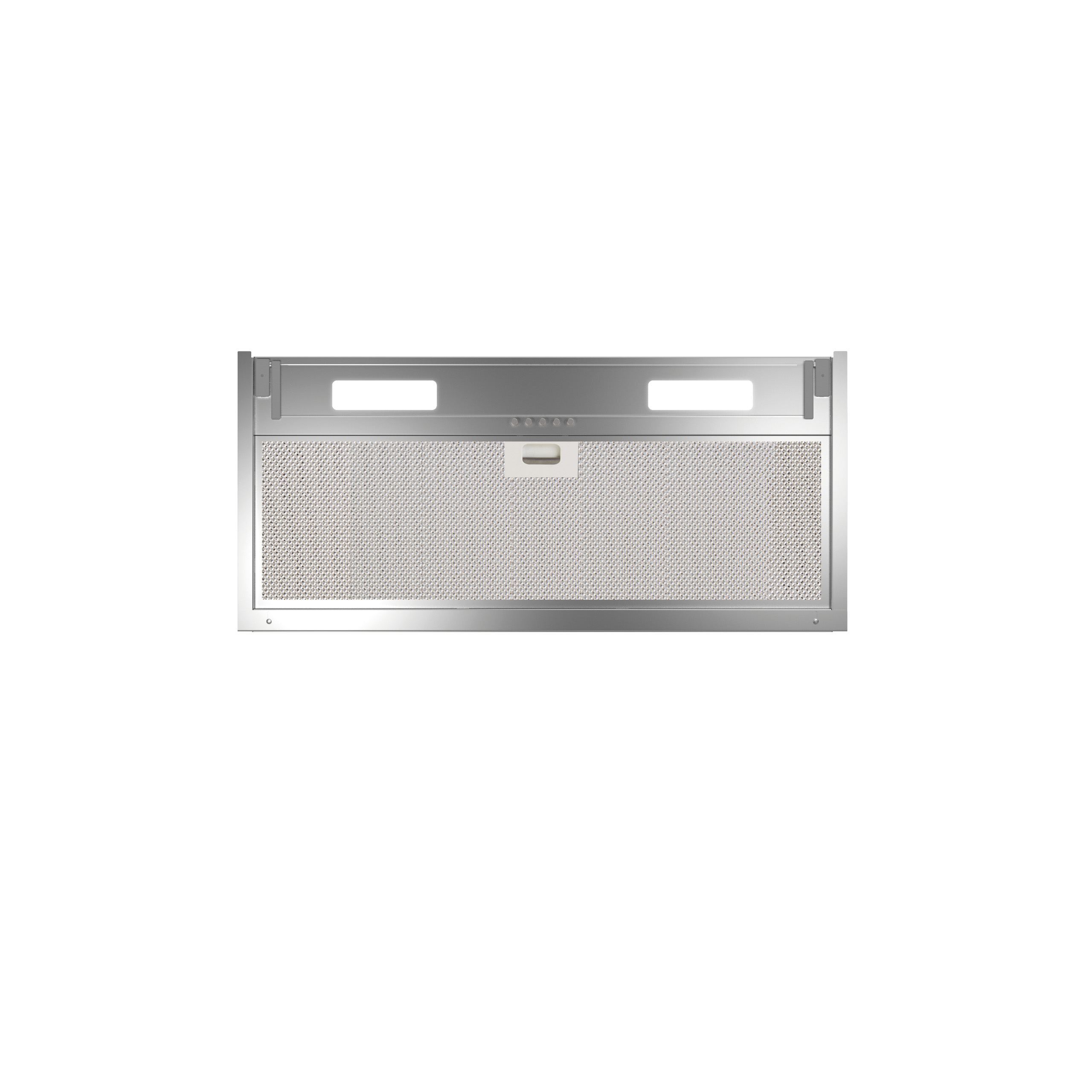

ARMONIA 70 X
Cod. 02187309
EAN 8422248351928
INFORMACIÓN GENERAL
EAN/UPC
8422248351928
Subfamily
Integrated
Product fiche according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Energy consumption per year) (kWh/año)
100,9
EEI class (Energy efficiency class)
C
FDE (Fluid dynamic efficiency)
16,3
FDE class (Fluid dynamic efficiency class)
D
LE (Light efficiency) (lux/W)
21,4
LE class (Light efficiency class)
B
GFE (Grease filtering efficiency)
88,5
GFE Class (Grease filtering efficiency class)
B
Normal mode airflow MIN (m3/h)
385
Normal mode airflow MAX (m3/h)
645
Normal mode acustic power MIN (dB)
56
Normal mode acustic power MAX (dB)
70
Po (Off-mode power consumption) (W)
0
Ps (Stand-by power consumption) (W)
0
Integration directive EU 66/2014
ƒ (Factor Increase in the time)
1,4
EEI (Energy efficiency Index)
82,4
QBEP (Maximum airflow point efficiency) (m3/h)
375,3
PBEP (Maximum pressure point efficiency) (Pa)
295
WBEP (Electrical power consumption at maximum efficiency) (W)
188,8
WL (Rated power lighting system) (W)
6
EMIDDLE (Average illuminance on the cooking surface) (lux)
269
External Dimensions
Width (mm)
698
Depth (mm)
310
Maximum Total Height (mm)
280
Minimum Total Height (mm)
280
Outlet Diameter (mm)
150, 125
Characteristics
Motor Quantity
1
Motor Model
TA
Maximum Pressure (Pa)
430
Filter Technology
Aluminium mesh
Control Tecnology
Mechanical push button
Booster
-
Power levels
3
Timer
-
Filter Saturation Indicator
-
Charcoal Filter Change Indicator
-
Dimmer Function
-
Connectivity
No
Remote control
-
Display
-
Lighting
Light Model
CSLED
Lightning Technology
LED
Installation
Minimum distance to an electric cooktop (mm)
550
Minimum distance to a gas cooktop (mm)
650
Recirculation Option
-
Charcoal Filter
√
Back Draught Shutter
No
Inner shield
-
Electric Connection
Rated voltage (V)
230-240
Rated frequency (Hz)
50
Rated power input (W)
276
Protection against electric shock
Class II
Power cord length (m)
276
Plug type
No plug
Accessories
Upper Decorative Duct Extension
02861306
Island Tube Enhancer
02832001
Active Charcoal Filter
02859392
Noiseless Flexible Duct
02893002
